Line switch

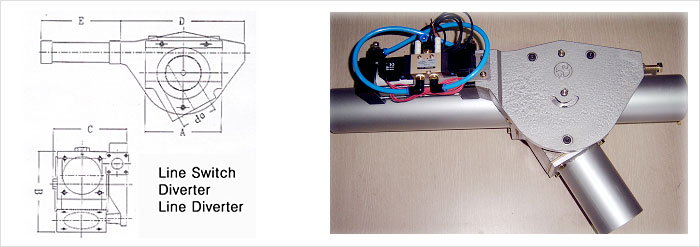

Line Switch or Diverter
| SIZE (ΦP) |
Dimension (mm) | |||||
| A |
B |
C |
D |
E |
Weight (kg) | |
| 80 |
160 |
192 |
178 |
280 |
204 |
23 |
| 100 |
200 |
236 |
208 |
300 |
224 |
35 |
| 120 |
240 |
281 |
224 |
420 |
224 |
48 |
| 140 |
280 |
325 |
268 |
485 |
273 |
60 |
Product Information

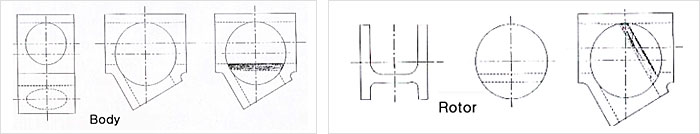

It is device used to pruning the air transport line of solid or pulverulent body. Traditional equipment used valve that looks like spoon but the rubber valve that attach to it couldn’t last too long and caused problems like deforming etc. To improve this problems, insert body of revolution to the inside of cast iron material body with holes in three direction, and these body of revolution spins 120 to degree by cylinder that operated by air pressure to change the flow direction, and it is designed to have no leaks to the closed direction.
