Machine specification

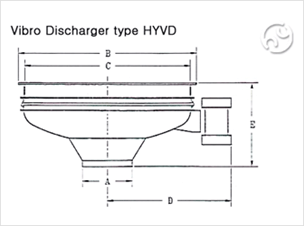

Vibro Discharger. Bin Activator

MODEL NO.	Dimension (mm)
	φ A	φ B	φ C	D	E	Weight (kg)
HYVD-100	200	1090	958	860	625	180
	300	1090	958	860	540
HYVD-130	300	1390	1258	1010	710	290
	500	1390	1258	1010	561
HYVD-160	300	1690	1558	1160	860	420
	500	1690	1558	1160	712
HYVD-200	300	2090	1958	1360	1158	640
	500	2090	1958	1360	1007
HYVD-250	300	2590	2458	1610	1422	950
	500	2590	2458	1410	1273

Product Information

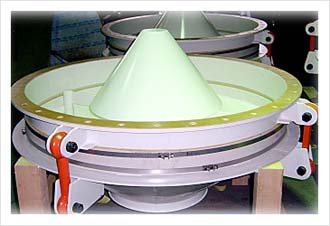

It is device installed at the lower part of bin of pulverulent body which streams not easily to promote smooth ejecting of pulverulent body. Roll and weld the steel plate as in shape of the picture above and short treat the surface then apply Zinc Coating and finish inside with white epoxy and outside with urethane hammer tone. The connection rod which connects top part and vibrating lower part is made with stamped S45C, and with vibrating motor, lower part’s vibrating is created towards cylinder to make pulverulent boy steams down efficiently.

Installation



1) Cut existing storing tank’s lower part to standard size of Hwa Young discharger then adapt fringe.

2) Assemble Hwa Young Vibrating discharger.

3) Structuring vibrating discharger motor’s circuit to operate when it receives signals about storing tank outlet is clogged up.
